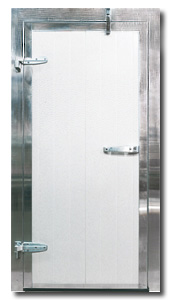

The Glace-Guard™ Entrance door combines insulation performance and durability, while being attractive and virtually maintenance free.

This entrance door, available in 3" or 4" thickness, is made of high quality metal skins. Its panels are insulated with a rigid polyurethane foam core, providing the highest insulation value. Its hardware is engineered to withstand an intensive usage, while providing safety and smoothness of operation.

The Glace-Guard™ Entrance door is operated by industrial cam-lift hinges, heavy duty pull handle and heavy gauge steel automatic door closer, ensuring trouble-free operation and effortless firm closing.

The Glace-Guard™ Entrance door is suitable for coolers and freezers, for both interior and exterior applications. It is your best door investment when performance, durability and low maintenance costs are criteria of selection.

The Glace-Guard™ Entrance door is ideal for applications such as :

Supermarkets
Restaurants
Cold storage distribution warehouses

Grocery distribution warehouses
Food processing plants

Products

Glace-Guard™ Entrance ET-400 (4")

Temperature range

-20°F to +120°F (-29°C to +49°C)

Standard dimensions

36" x 84" (914mm x 2134mm)
60" x 84" (1524mm x 2134mm)

For larger door size, please consult with Thermostop.

Thickness

Glace-Guard™ Entrance ET-400: 4" (100mm) thick

Panels

Door can be single or bi-parting.

Insulated with rigid polyurethane, foamed in place under high pressure between two metal skins. Standard 26ga. steel skins, white stucco finish. For other skin options, please consult Metal skins options. Panel frame is made with heavy duty aluminum extrusions.

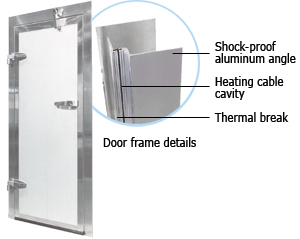

Door frame and thermal barrier

Bottom door gasket

Door frame is made of shock-proof 5/32" (4mm) thick exterior and interior extruded aluminum angles. The exterior aluminum angle has an incorporated resin thermal break.

Extruded aluminum retainer with two U-shaped rubber gaskets to insure airtight joint.

Perimeter magnetic gasket

A full perimeter magnetic vinyl gasket insures that the door is airtight and vapour-proof on the perimeter joint.

Hinges

For doors with width under 60" (1524mm): Self-closing and reversible high pressure die-cast zinc hinges with self-lubricating nylon cams. Brushed chrome finish.

For doors with width of 60" (1524mm) and greater: Heavy duty self-closing and reversible high pressure die-cast zinc flanges, 3/16" (5mm) thick steel strap. Gray finish.

Pull handle

High pressure die-cast zinc cylinder locking handle, complete with emergency inside release system. Brushed chrome finish.

Door closer

Heavy gauge steel mechanical door closer, complete with extra-wide hook. Chrome finish.

Options

Heat trace :
For freezer applications, the door is equipped with a heat trace on four (4) sides of the door, preventing ice or frost accumulation and eliminating the need to have a heated threshold.

Kick plate :
24" (610mm) high 1/8" thick aluminum checker plate, kick plate on full door width, to protect the door bottom against forklift impacts.

Metal skins options

Steel	Finish
26ga. (0.41mm)	stucco, white
20ga. (0.86mm)	smooth, white
16ga. (1.42mm)	smooth, painted

Aluminum	Finish
24ga. (0.60mm)	stucco, white or grey RAL-9006
16ga. (1.30mm)	smooth, clear anodized
