Thermostop - Tradition of quality

In an efficient warehouse environment, your dock doors are constantly exposed to damages by fork-lifts frequently moving at high speeds. When the door gets hit, it is generally the bottom panel or the first two bottom panels that get damaged. Repairing and replacing broken panels can be expensive both in maintenance costs and in down time.

Your solution: the Impactable Composite Panel.

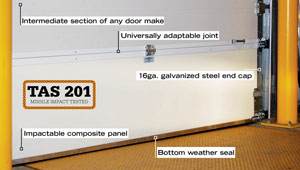

Superior impactable capability	Thermoplastic composite skins. Missile Impact Test 201 of the Florida (USA) Building Code. No penetration of exterior skin under the impact of a 2” x 4” x 8’ stud at 50’ per second.
Universal adaptable joint	Joint universally adaptable to all door makes, door thicknesses (1½” to 2”) or joint profiles. Universally adaptable joint
Manufacturing process	Made with thermoplastic composite skins and reinforced with an EPS foam core.
Core	Expanded polystyrene (EPS) foam core.
Finish	White.

Bottom weather seal

End caps

U-shaped, flexible PVC weather seal, retained in a heavy duty extruded aluminum retainer, securely fastened to the bottom of the door.

Sections are equipped with 16ga. (1.42mm) thick galvanized steel end caps.

Easy installation

It takes a little time to install the Composite Impactable Panel as compared to a standard bottom panel
